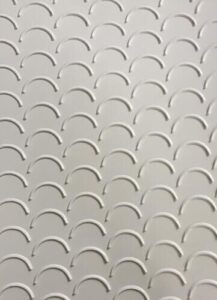

White PVC CRESENT TOP BELT

2Ply White PVC Horseshoe Top X Bare Bottom, Food and general processing, chemical resistant

White PVC CRESENT TOP BELT

White rubber CRESENT TOP BELT

Minimum Pulley Ø : 60 ;

10N/mm @ 1% Elongation

Temp ⁰C  : -10⁰ to +90⁰

Thickness:  5,0mm

Weight : 6,1  Kg/m²

Food Grade Profile Belts

These include: (1) the Corrugated pattern, rounded ribs 1/16″ high, on 1/4″ spacing, center to center;

(2) the Chevron pattern, ribs 1/8″ high on 1″ spacing, designed for incline conveying of small and medium sized food products:

(3) the Top flight pattern, lateral cleats 3/16″ high on 6″ centers, and longitudinal cleats 3/16″ high on 4″ centers; raised buttons at the corners of the pattern allow for drainage of wet product;

(4) the CROSS TOP pattern cleats 3/8″ x 3/8″ taper down to 1/4″; and open 8″ x 8″ pattern allows water drainage and ease of cleaning.  All four patterns have a working strength PIW of 100 lbs.

Applications Power transmission belting.
PVC Food and general processing, chemical resistant
Polyurethane Food processing and accumulation, oil and cut resistant
Crockback top Good grip, general, hessian bags, incline up to 30ᵒ.
Bare top Accumulation, food and confectionary, side loading.
Rib top Good grip, general conveying, wood, incline up to 20ᵒ.
Rough top Good grip, general conveying, boxes, hessian bags, incline up to 20ᵒ.
Diamond top Easy release, food, wet dough, confectionary.
Horse Shoe Good grip, general conveying, inclined troughing, corn & maize.
Grooved Grip and acceleration, food and general conveying, Incline up to 20ᵒ.
Saw tooth Good grip, general conveying.
Smooth General conveying.
Affordable range of PVC and PU conveyor belting stocked in bulk
Profile PVC belting such as rough tops, diamond tops and croc-back profile stocked
Light weight solid woven conveyor belting with a smooth top cover and impregnated fabric bottom, suitable for general conveying and unpacked foods products (FDA/USDA)
V-Profile, cleats and sidewalls available for special application designs.
