EP (POLYESTER) CONVEYOR BELT

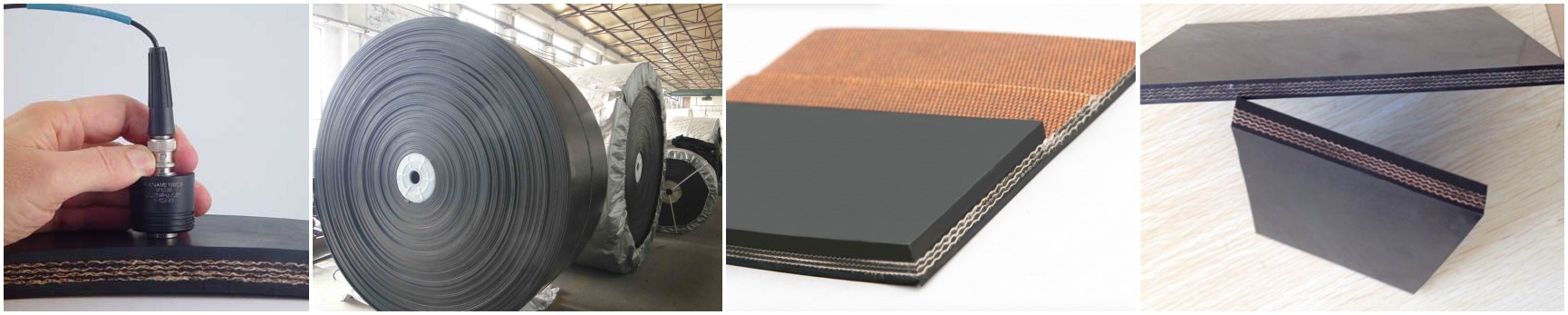

EP Conveyor Belt for Cement

Structures:
It uses polyester canvas as carcass, and finished through the processes of calendering, firming and vulcanizing, etc. We can add transverse rigid or reinforced layer (1-2ply) .

EP1000/4 ep conveyor belt

Features:
With the advantages of thin belt with light weight, high tensile strength, fatigue and wear resistance, erosion resistance of water, steam, chemical, good impact resistance, excellent groove formation ability, low elongation, good stability ever heated and long service life, it’s the developing trend of fabric conveyor belt. It is mainly used in harsh condition of long distance, heavy-load, high-chemical corrosive etc, it is especially suitable for transporting in moist environment.

Types
General EP Belt, Fire-retardant type, Cold-resistant type, Wear-resistant type, Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type, High-grade type and etc.

Standards ：
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.

Cover Rubber Grade

Belt Rubber Grade

Standards Cover Rubber Adhesion
Tensile Strength Elongation at break Abrasion Cover to Ply Cover to Ply Ply to Ply
DIN 22102 Mpa % mm3 N/mm N/mm N/mm
(≤1.5mm) (>1.5mm)
DIN 22102-Z 15 350 250 3.5 4.5 5
DIN 22102-W 18 400 90 3.5 4.5 5
DIN 22102-Y 20 400 150 3.5 4.5 5
DIN 22102-X 25 450 120 3.5 4.5 5
AS 1332 Mpa % mm3 N/mm N/mm N/mm
(≤1.9mm) (>1.9mm)
AS 1332-N17 17 400 200 4 4.8 6
AS 1332-M24 24 450 125 4 4.8 6
RMA-1 17 400 150 3.5 4.5 5
RMA-2 14 400 250 3.5 4.5 5
RMA STANDARD RMA-II RMA-II RMA-II RMA-1 RMA-1 RMA-1
Tensile strength:min. 12Mpa 14MPa 15MPa 17MPa 20MPa 25MPa
Abrasion Loss: max. 280mm3 150mm3 200mm3 180mm3 150mm3 120mm3
Belt Spec. Cut edge
2Ply220PIW
(EP200 x 2)		 1/8 x 1/16″(3.2+1.6)
3/16 x 1/16″(4.8+1.6)
3Ply330PIW
(EP200X3)		 3/16 x 1/16″(4.8+1.6)
1/6 x 1/16″(6.4+1.6)
4Ply440PIW
(EP200X4)		 3/16 x 1/16″(4.8+1.6)
1/6 x 1/16″(6.4+1.6)
3Ply600PIW
(EP350X3)		 1/6 x 1/16″(6.4+1.6)
3/8 x 1/8″(9.6+3.2)
1- Adhesion: min.5N/mm.
2- molded edge or cut edge
COVER RUBBER GRADE
Cover Grade Tensile Strength Elongation Abrasion Loss
Min (Mpa) Min (%) Max (mm2)
DIN-W 18 450 90
DIN-Y 20 450 110
GRADE 1 17 450 120
GRADE 2 14 400 170
GRADE 1 HARK 18 450 90
MOR 12 1,400 300
SOR 15 300 200
FABRIC TYPE
NN Nylon / Nylon
EP Polyester / Nylon
SW Straight Wrap
CFW Crow Foot
BREAKER FABRIC Steel Mesh

We could offer rubber conveyor belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.

Specification

Tech Specification

Fabric type Ply Thickness
(mm/P)		 Strength Series(N/mm) Cover Thickness(mm) width(mm) Length(mm)
2ply 3ply 4ply 5ply 6ply top bottom
EP100 0.8 200 300 400 500 600 1.5~12 0~6 300~6300 300
EP125 0.85 250 375 500 625 750
EP150 0.9 300 450 600 750 900
EP200 1.2 400 600 800 1000 1200
EP250 1.4 500 750 1000 1250 1500
EP300 1.5 600 900 1200 1500 1800
EP400 2.2 800 1200 1600 2000 2400
EP500 2.5 1000 1500 2000 2500 3000

Data Table

Safety property
Item Fire resistant grade
K1 K2 K3
Duration of flame Total value of flame duration of 3 samples
with covers plus 3 samples without covers,
not more than 45s. Any single value with covers not more than 15s, any single value without covers not more than 20s.		 Total value of flame duration of 6 samples with covers,
not more than 45s, any single value not more than 15s.		 Average value of flame duration of 3 samples with covers,
not more than 60s.

Belt types

HIGH ABRASION RESISTANT CONVEYOR BELTING

DIN STANDARD 12Mpa Z N W Y X
Tensile strength:min. 12Mpa 15MPa 17MPa 18MPa 20MPa 25MPa
Abrasion Loss: max. 280mm3 200mm3 180mm3 90mm3 150mm3 120mm3
Belt Spec. Molded edge
EP250/2-3+1
EP315/2-3+1
EP315/2-4+2
EP400/3-4+2
EP400/3-6+2
EP500/4-5+2
EP630/4-6+2
EP630/4-8+3
EP800/4-6+2
EP800/4-8+3
Please tell us your specification for quotation.
Belt types we can supply:
1 CC conveyor belt 8 Chemical resistant conveyor belt
2 Polyester conveyor belt(EP) 9 Cold resistant conveyor belt
3 Nylon conveyor belt(NN) 10 Whole-core flame retartant conveyor belt
4 Steel cord conveyor belt 11 Oil resistant conveyor belt
5 Chevron conveyor belt 12 High temperature resistant conveyor belt
6 Heat resistant conveyor belt 13 Patterned conveyor belt
7 Common Flame retartant conveyor belt 14 Sidewall conveyor belt

Application & Feature

Application
General conveyor belt is widely used in the metallurgy, building materials, electric power, port, Cement, Fertilizer, mineral mountain, agriculture, etc., Which is suitable for transporting normal temperature non-corrosiveness bulk, granular, powder supplies in general conditions.

Features
1. Natural rubber Thin belt body with high strength, light weight;
2. Anti-abrasive, impact resistant, corrosion resistant;
3. Softy belt body, good flexibility, excellent trough;
4. Vulcanization molding;
5. Long service life.

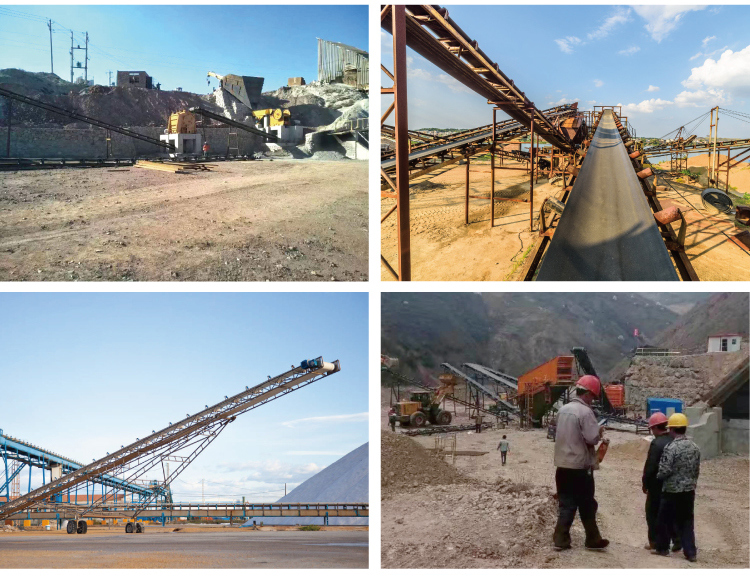

Steel cord Tearing-Resistant-Bucket-Elevator-Conveyor-Belt
