Pipe Tube Conveyor Belt

pipe tube rubber conveyor belt

Description

Pipe tube conveyor belt /rubber conveyor belt

Material: Polyester, Nylon etc.

1.Suitable belt rigidity, easy tube shape forming and turning, maintain stable roundness.

2.Flexible belt body, good sealing in lap joint.

3.Fatigue and abrasion resistance, stable moving weight carrying ability.

4.Suitable for turning convey, big declining angle and stable return way conveying.

5.Enclosed transportation, no materials splashing, scattering, meet environmental protection requirement.

6.Good weathering, ozone, UV light, aging resistance properties .

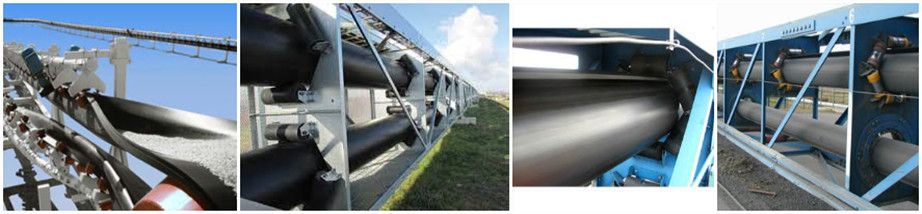

Pipe tube conveyor belt

Pipe tube conveyor belt

Application

Pipe tube conveyor belt adopting cotton canvas, nylon canvas or polyester canvas as the belt core, the belt has good elasticity, excellent trough formation property, and low elongation. The rubber cover, which is made form chemical resistant materials, has fine anti-chemical corrosiveness and good physical properties by adopting acid and alkali resistance material.

Technical Data Sheet

Pipe Dia. (mm) LoadArea (m2)(75%) Belt Speed (m/min) Conveying Capacity(m3/hr) Max. Lump Size (mm) Horizontal Min.Length(M) Equivalent Tranditional Conveyor Belt
100 0.006 100 36 30 15 300
150 0.013 120 95 30-50 18 300-450
200 0.024 130 185 50-70 20 500-600
250 0.037 140 310 70-90 23 600-750
300 0.052 150 475 90-100 25 750-900
350 0.072 175 750 100-120 30 900-1050
400 0.095 200 1140 120-150 35 1050-1200
450 0.15 225 2000 150-200 40 1200-1500
500 0.215 250 3200 200-250 50 1500-1800
550 0.285 275 4700 250-300 60 1800-2000
600 0.425 300 7650 300-400 70 2000-2400
